10/26/05, 10/31/05, 11/1/05, 11/2/05, 11/3/05, 11/4/05, 11/5/05

Total engine rebuild less crank rebuild - upper end and installation in frame

Background: This is a continuation of the lower end rebuild process posted a few weeks ago. Notes and pics below.

Problems: There were a few things that had been bugging me since the last build of this motor. I attempted to remedy them this time around. They are:

Approach: Get busy. My deadline of 11/6 was fast approaching and my motor was still sitting up on the bench. No good. My buddies in Philly were starting to call and harass me daily to get it done in time. Jeffrey was unavailable for a few sessions so I brought in a willing, if green, new guy. I realized in Jeffrey's absence that we had grown to be quite a polished team in the shop from working so much together. I had been spoiled (and unaware of it) by always having been handed the correct wrench, the right parts, my preferred tools, etc. He did show up unannounced just in time to help me install the cylinders over the rings and torque the base nuts. Thanks. We finished it up on Saturday afternoon after a major marathon. Complications (some bike-related, some not) kept us from making Philly that night although I did meet my other goal of having a bike to ride all that Sunday, which was unseasonably warm t-shirt weather. Ahhhh. . .

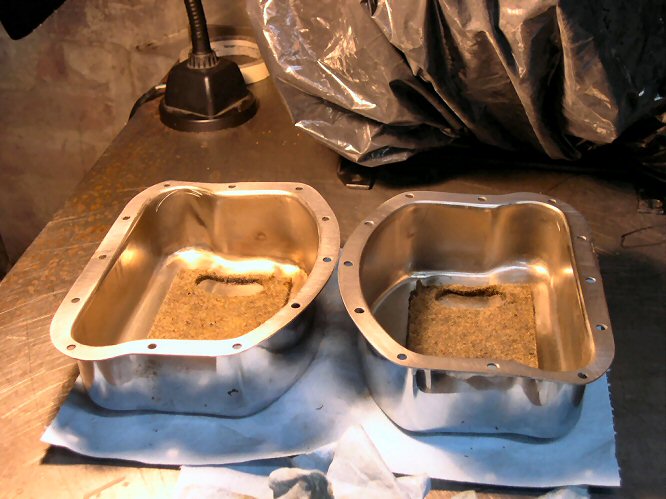

Valve cover surfaces ground flat

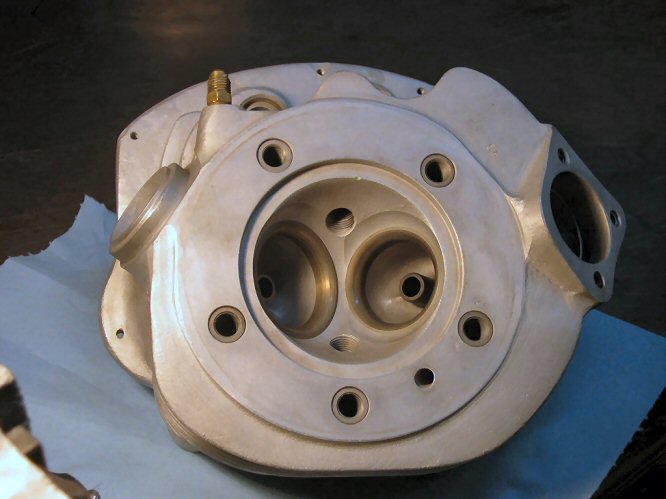

Heads walnut shell blasted

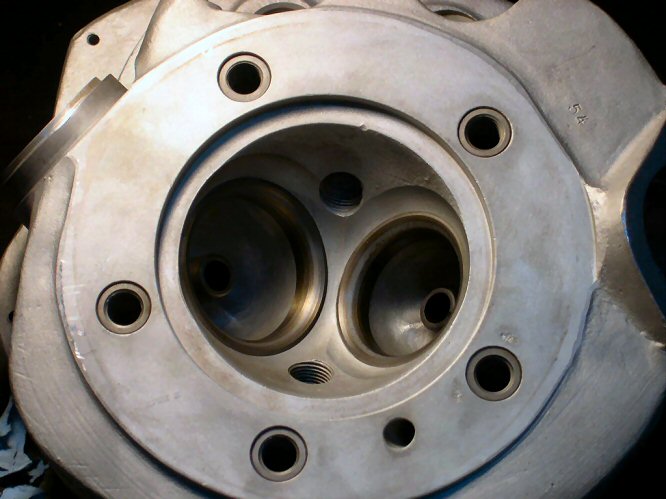

Valve seats lapped

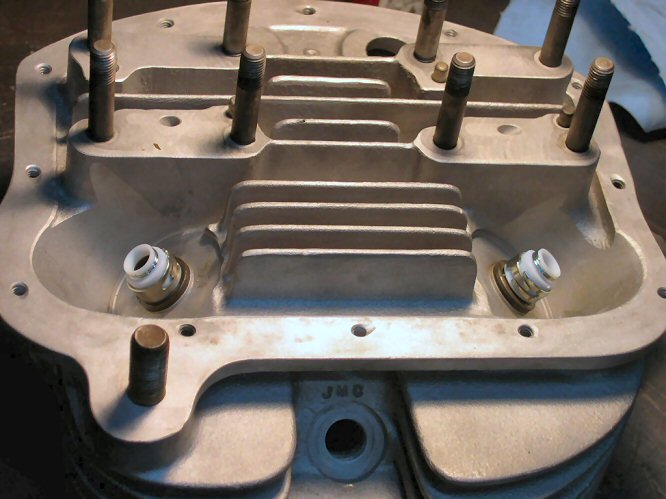

Valve stem oil seals installed

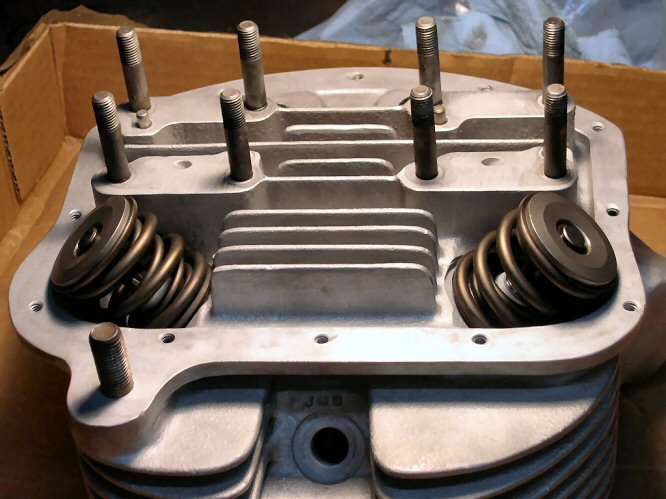

Valves installed

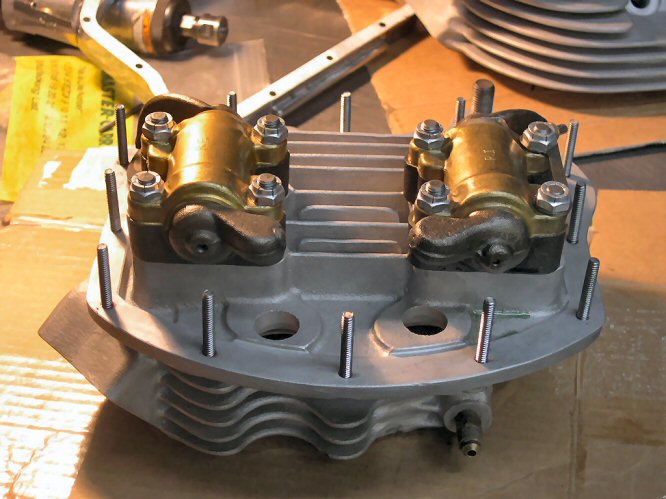

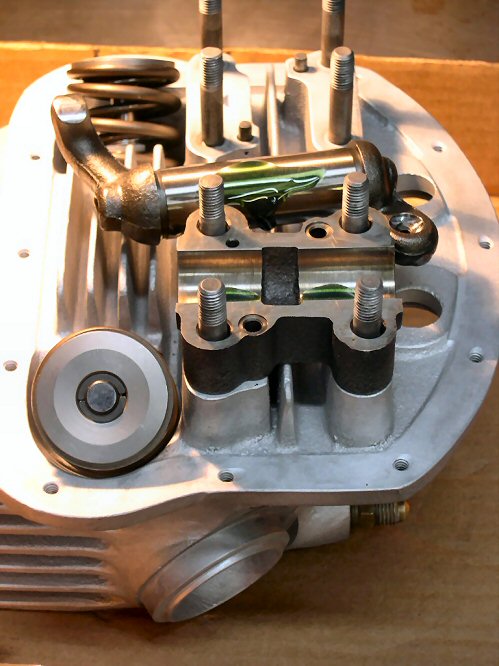

Rocker blocks and arms prepped and installed

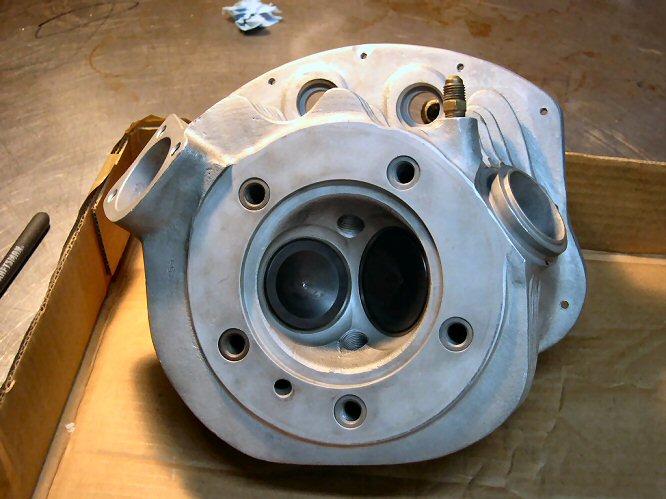

Valves done

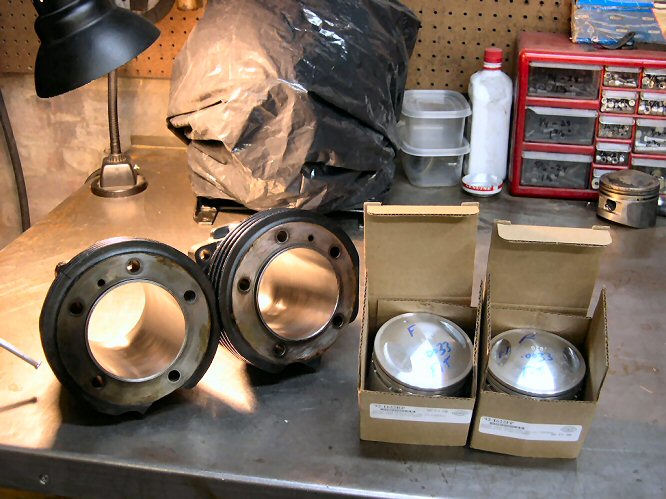

Cylinders and pistons back from Broadway Choppers in Schenectady (thanks Lee!)

Valve pockets smoothed, pistons polished

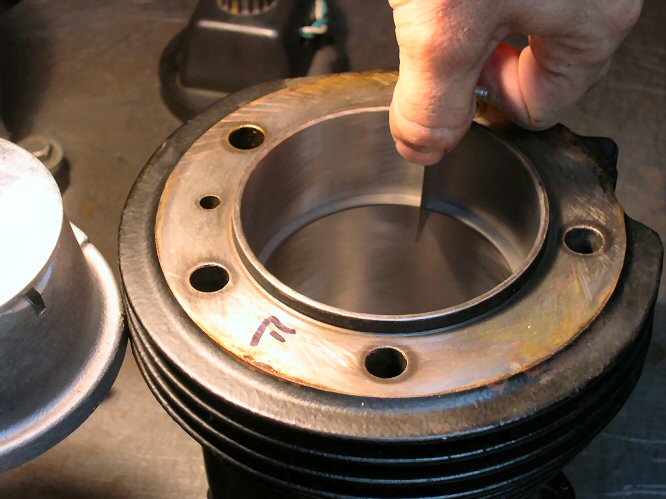

Piston ring gaps checked

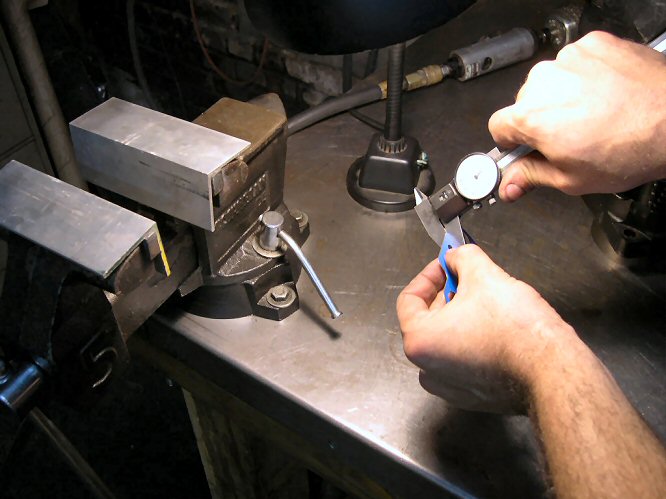

Base gaskets measured

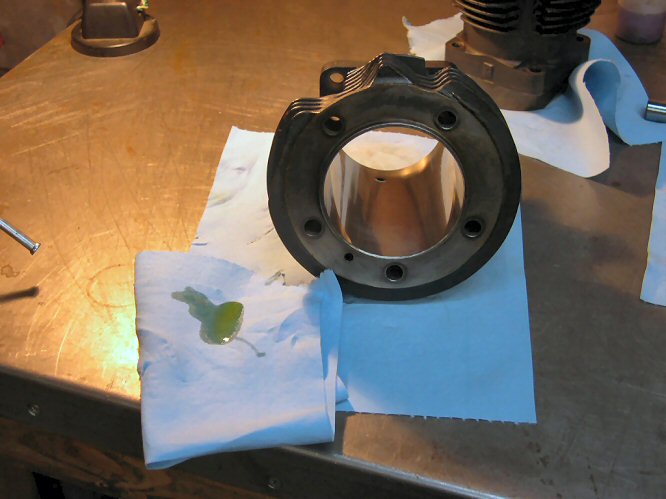

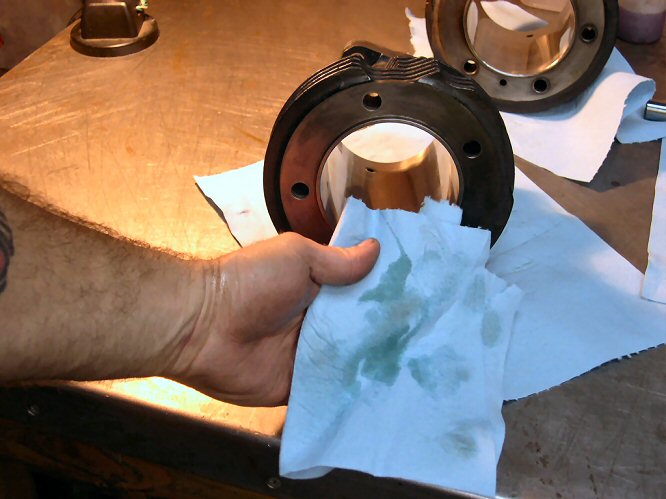

Cleaning cylinders thoroughly before installation

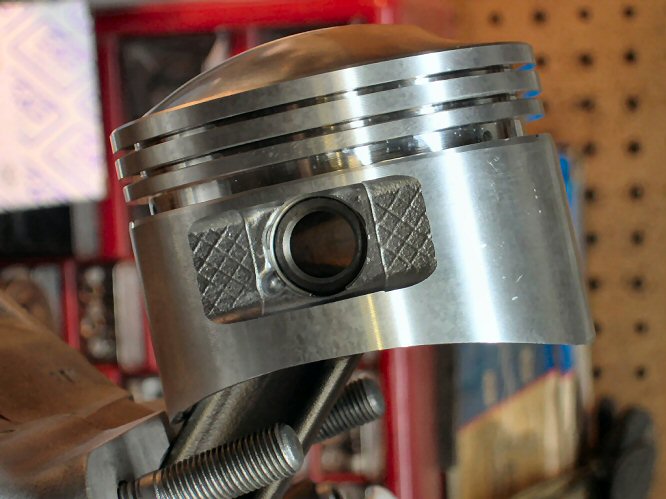

Pistons and clips installed

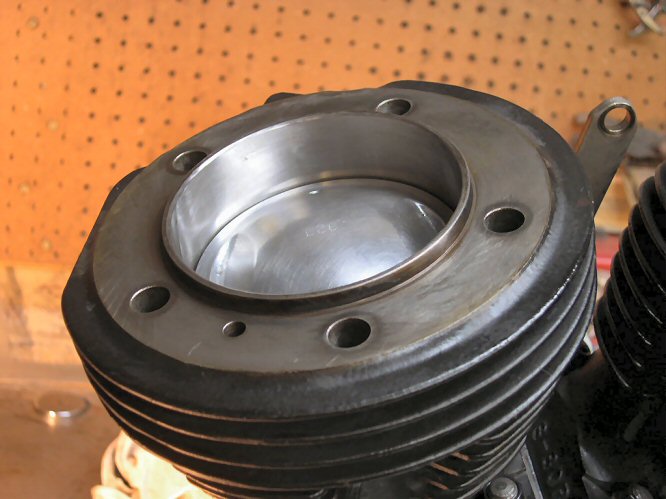

Cylinder installed

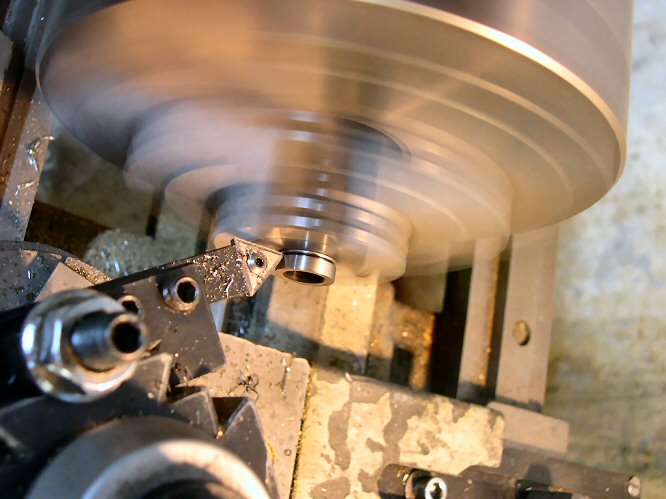

Turning base nuts to fit cylinder

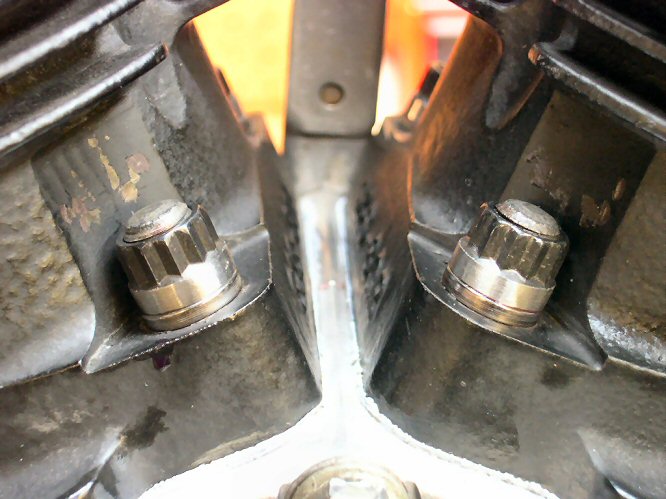

Cylinder and base nuts installed and torqued

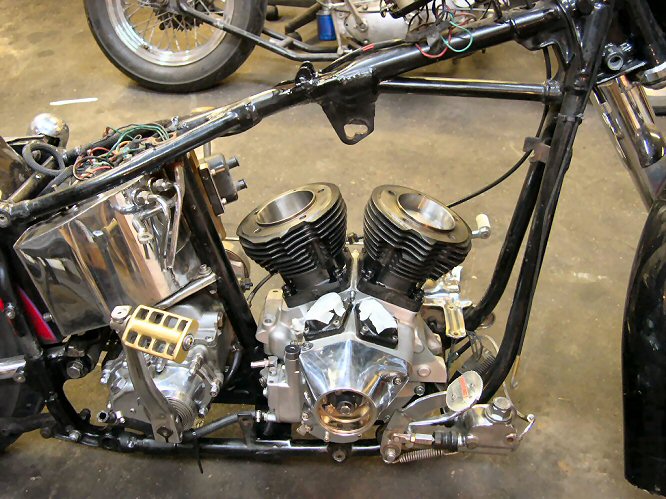

Lower end back in frame

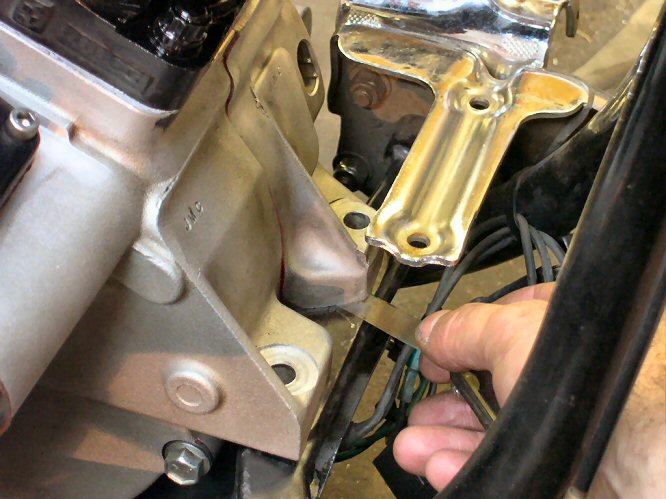

Measuring front motor mount gap

VERY special top-secret shim stock (.005")

Motor mount shims done

Base nut tool ground to fit

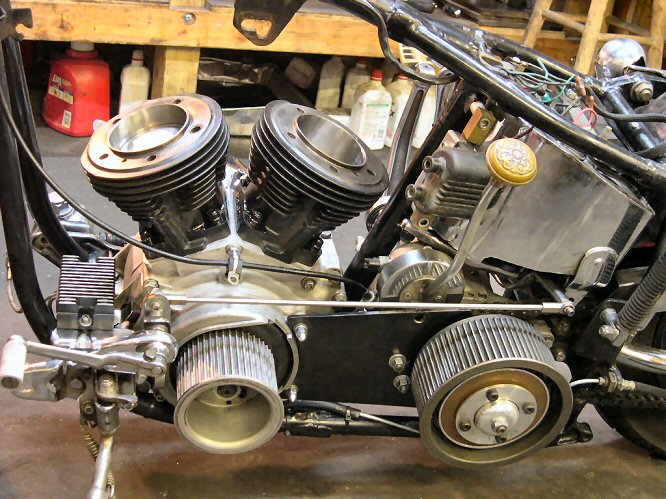

Engine torque plate installed (Fab Kevin makes a nice all-business part for a good price)

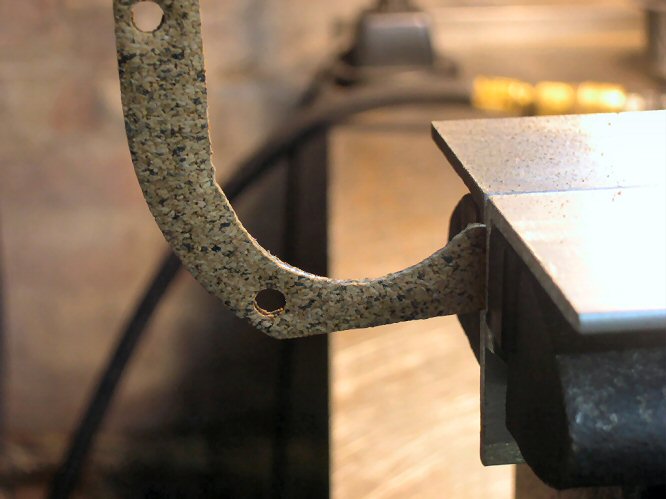

Clearance valve cover gaskets for valve top collars

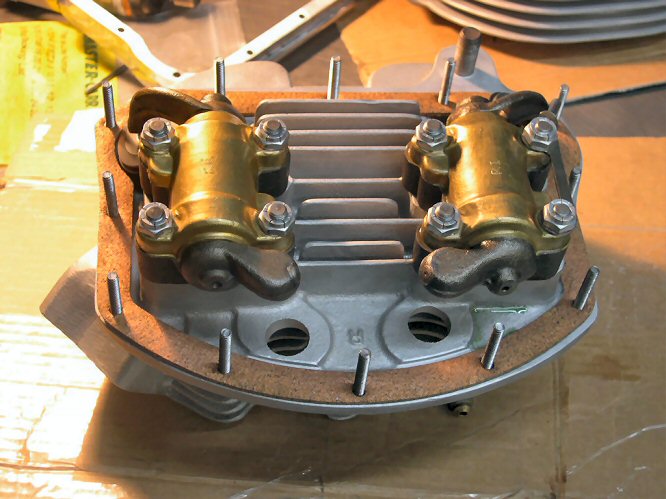

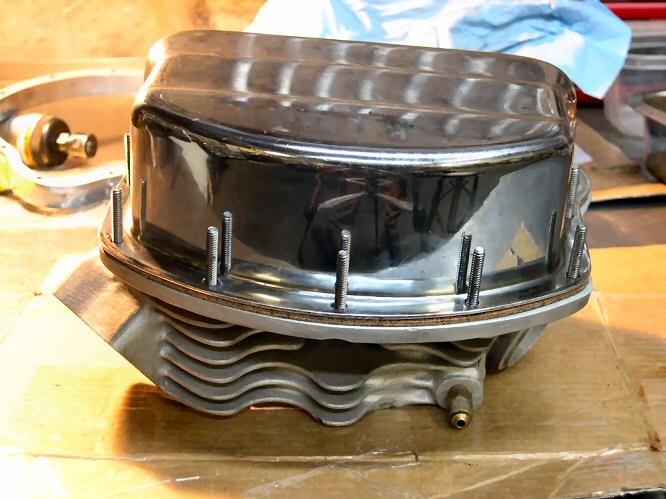

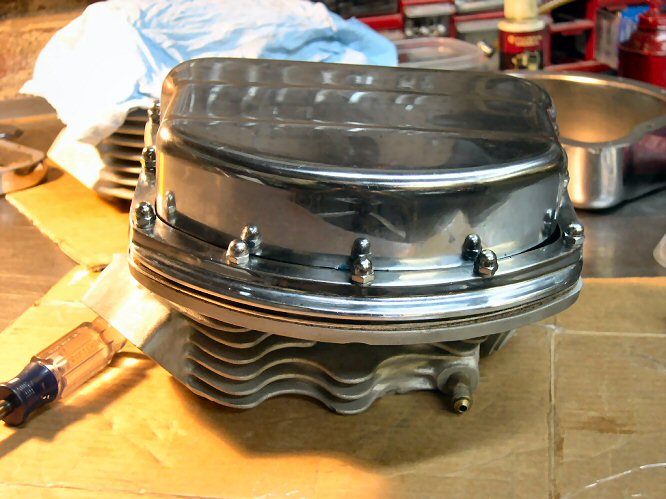

Valve cover studs, gasket, cover, nuts installed

Heads done

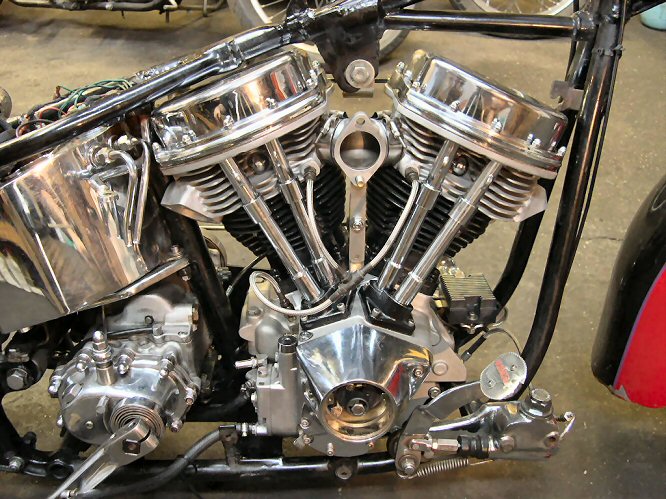

Heads installed

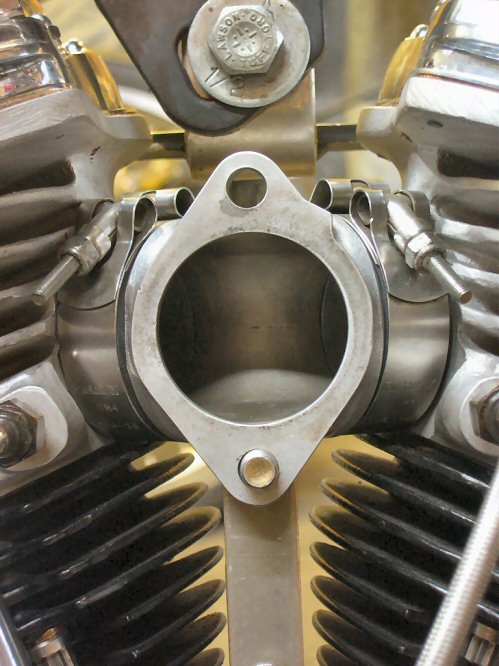

Manifold installed

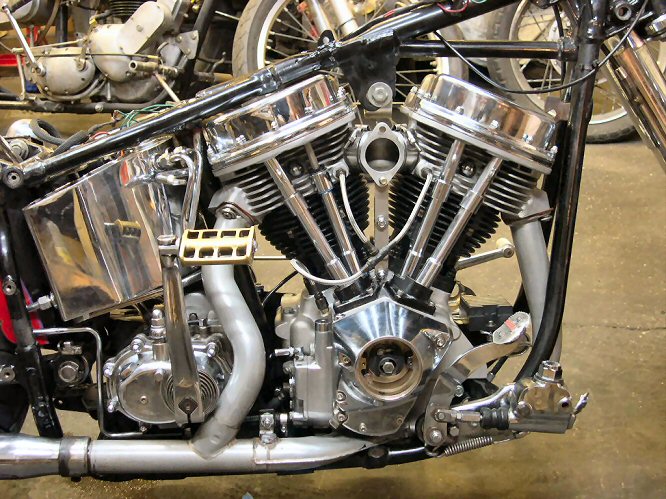

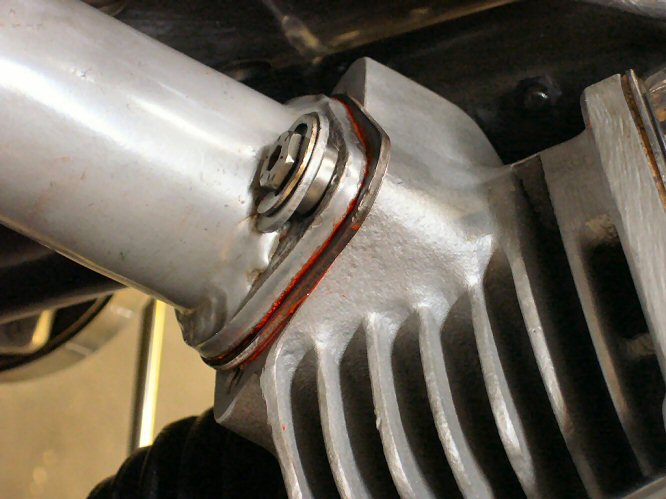

Exhaust installed and sealed

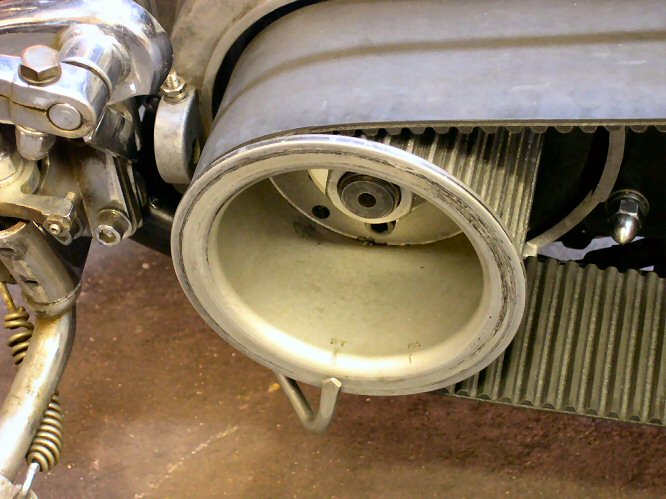

Belt drive and timing pointer installed

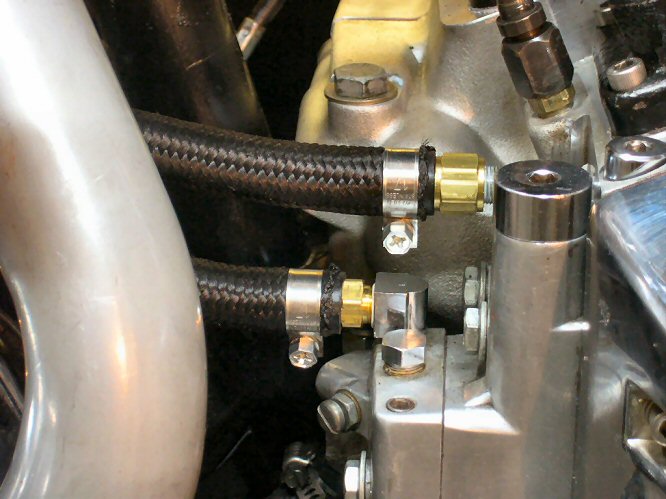

Oil lines, fittings, and filter installed

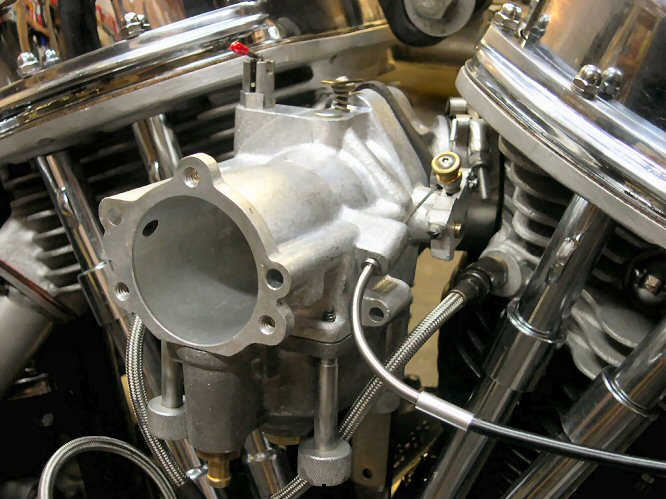

Carb installed

First start!!!!!!!!!!!!

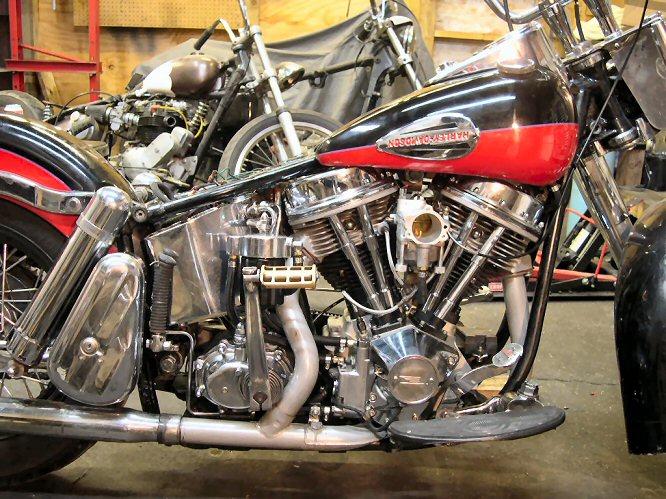

Gas tanks installed
